MEASUREMENT / DIAGNOSTICS / AUDIO EVIDENCE

EVERWORKS
SCOPE ULTRA

One field platform for spectrum, dual-channel transfer, timing, room diagnostics, level control and system alignment.

Download field beta Explore live workspaces
3operating modes
9live workspaces
44.1–192kHz regression coverage
MAC · WINstandalone platforms

ONE MEASUREMENT ENVIRONMENT

From the source file to the system processor.

SCOPE keeps offline evidence, live acquisition and matched comparison inside one application. Routing, captures and display choices stay explicit so the engineer can see what is measured, what is predicted and what still needs verification.

01

FILE

Inspect loudness, peaks, dynamics, waveform, spectrum and spectrogram from an audio file without entering the live engine.

02

LIVE

Choose independent input and output devices, route measurement and reference channels, run the generator and keep every live diagnostic on one shared snapshot.

03

COMPARE

Compare A and B with level matching, spectral delta and the metrics needed to separate tonal change from a simple gain difference.

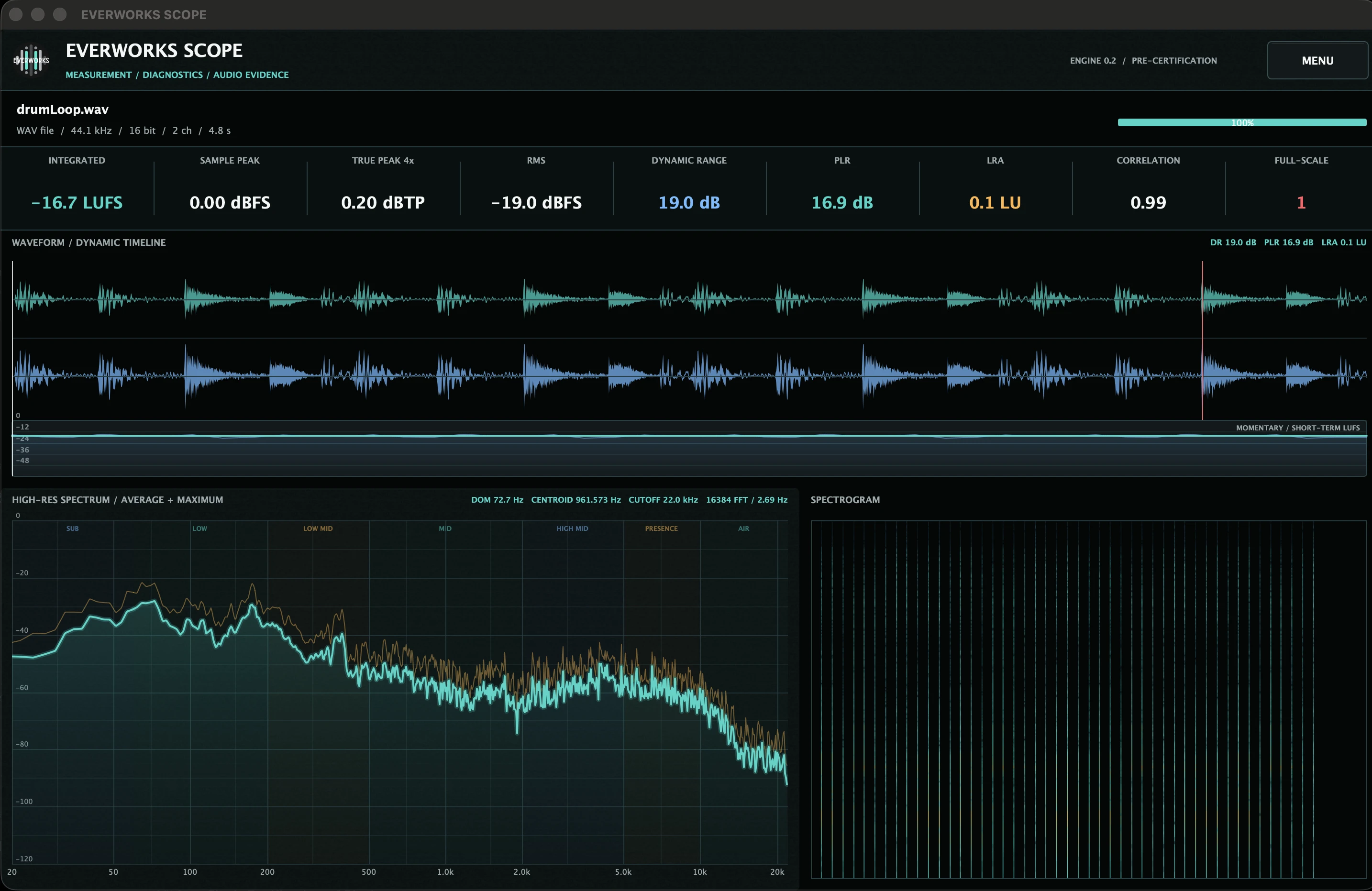

EVERWORKS SCOPE file analysis showing waveform, loudness, spectrum and spectrogram

FILE / AUDIO EVIDENCE

A complete offline read before the live decision.

Integrated loudness, sample and true peak, RMS, dynamic range, PLR, LRA and correlation sit above a synchronized waveform, high-resolution spectrum and spectrogram.

LIVE / NINE PURPOSE-BUILT VIEWS

The same acquisition, organized around the job.

Every view reads the shared live state. Opening another graph does not create a second capture engine or a second version of the measurement.

01

SPECTRUM

Fractional-octave RTA, temporal averaging, source routing, targets, traces, spectrograph and stereo image.

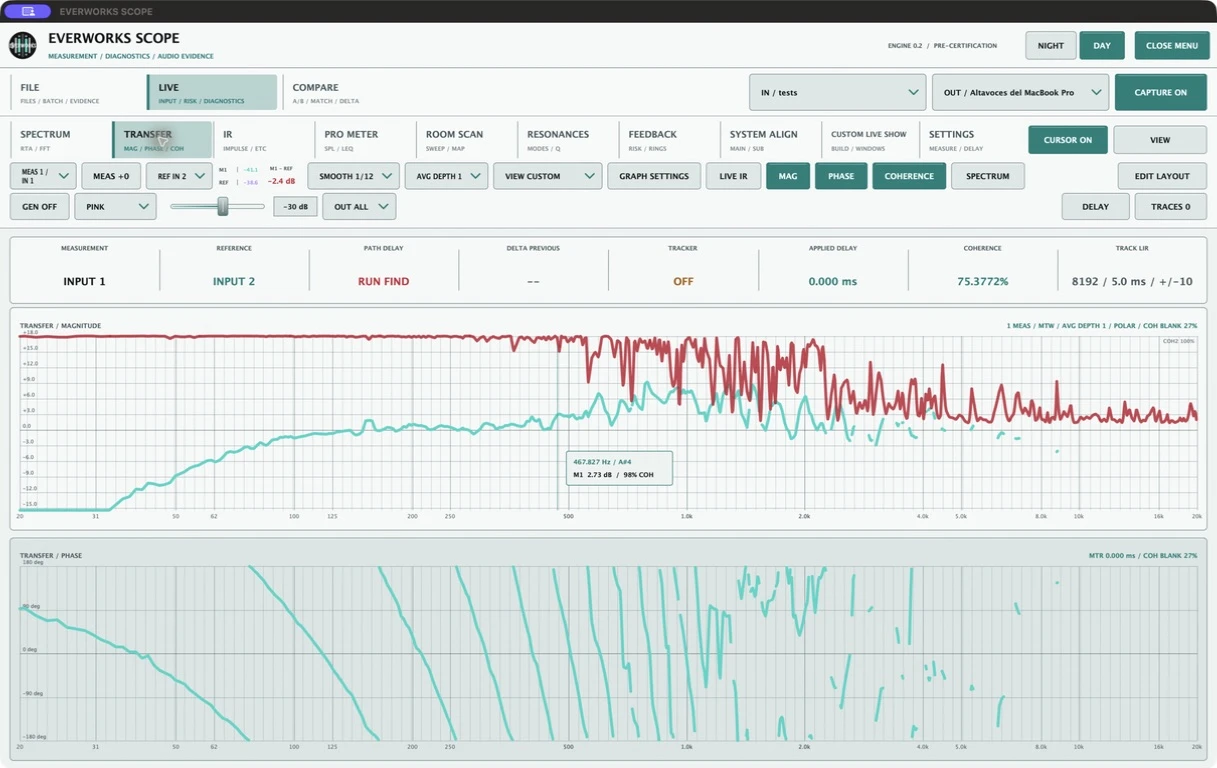

02

TRANSFER

Dual-channel magnitude, phase, coherence, live IR, embedded spectrum, delay workflow and frozen traces.

03

IR

Impulse response, ETC and time-domain evidence for arrival, reflections and decay behaviour.

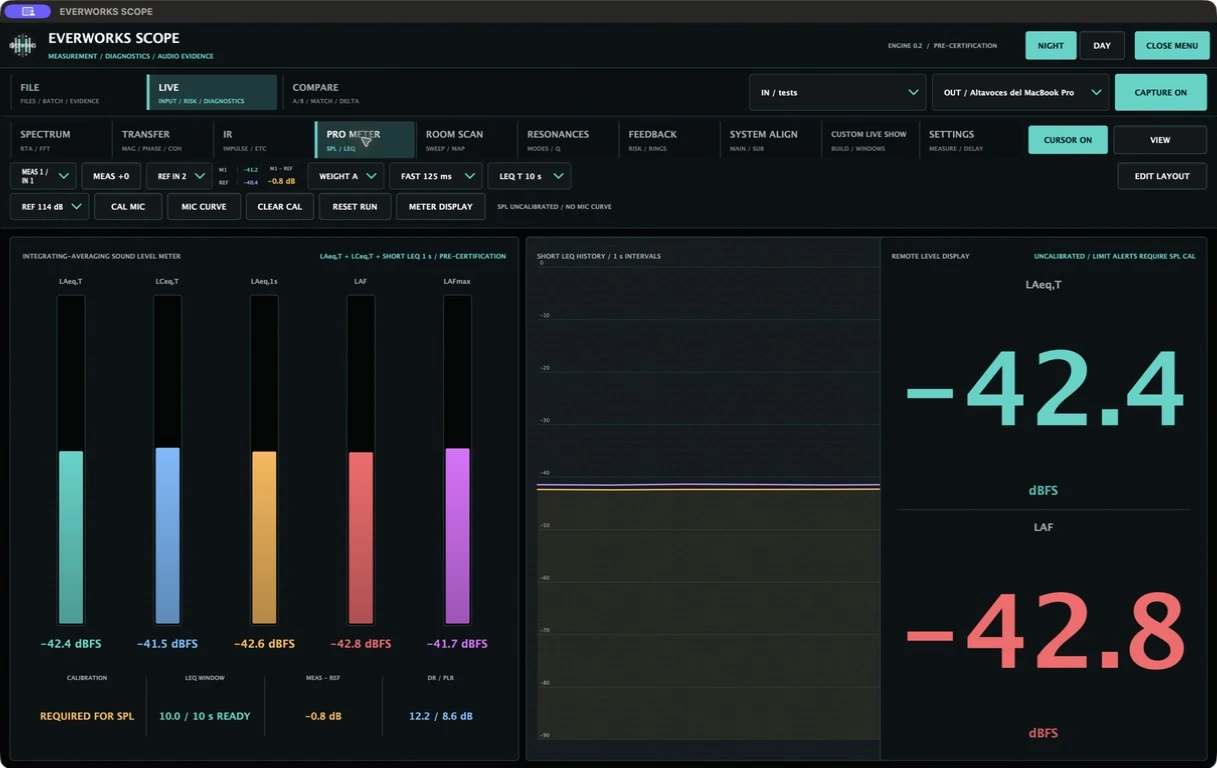

04

PRO METER

Weighted and integrating levels, remote readout, calibration files and configurable caution and overload limits.

05

ROOM SCAN

Coherent sweep capture, response, waterfall decay, RT, clarity and room-quality evidence.

06

RESONANCES

Shared peak analysis for modal frequency, Q, persistence and time behaviour.

07

FEEDBACK

Growing-tone risk, rings, candidates and persistence without treating every musical peak as feedback.

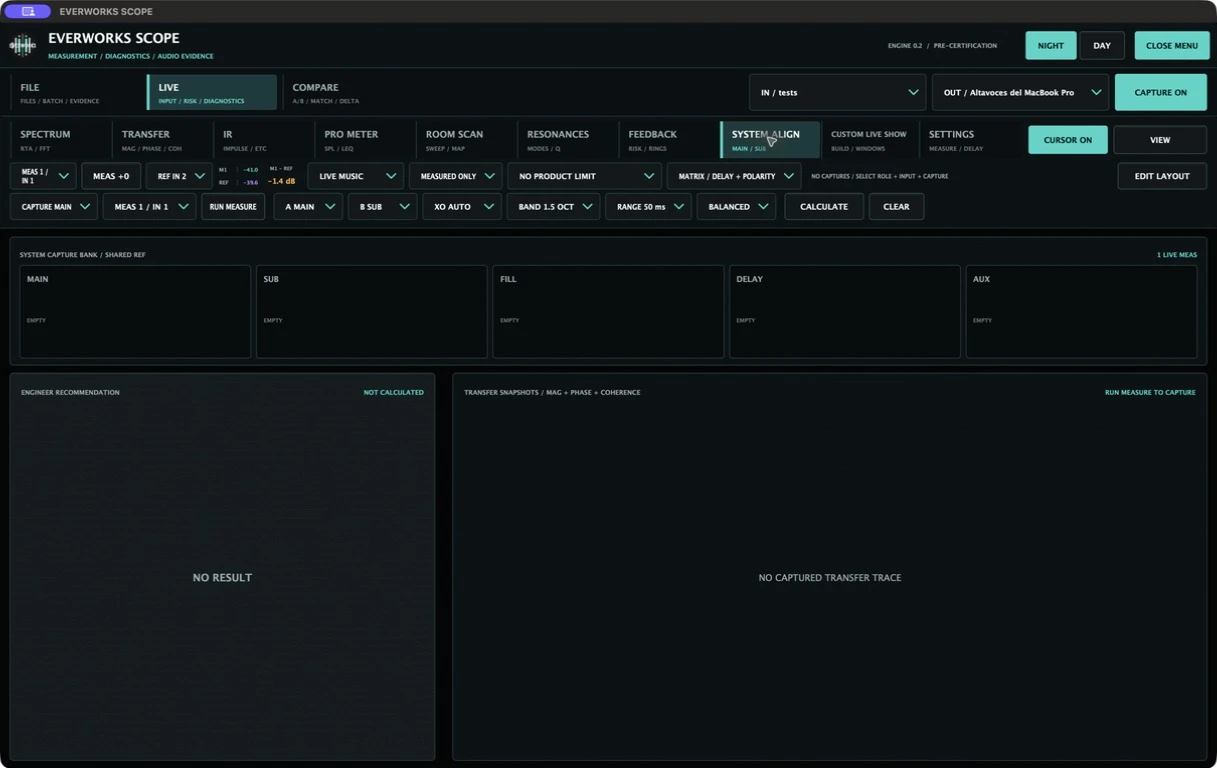

08

SYSTEM ALIGN

Capture MAIN, SUB, FILL, DELAY and AUX; evaluate timing, polarity, crossover sum and deployable processing limits.

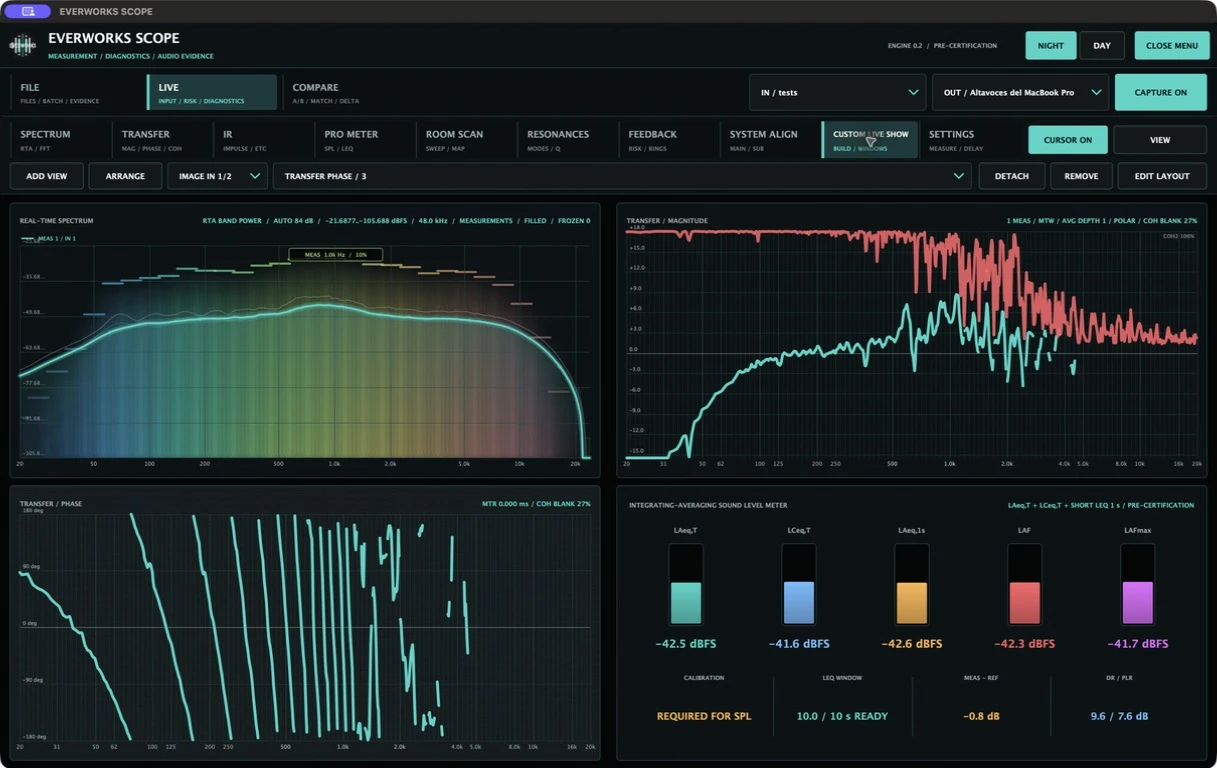

09

CUSTOM LIVE SHOW

Build, resize and detach the exact set of displays required for the show or measurement position.

REAL APPLICATION CAPTURES

Inspect each workspace as it actually ships.

These captures come from the current native build running a controlled dual-channel fixture. Day and Night palettes use the same data and controls.

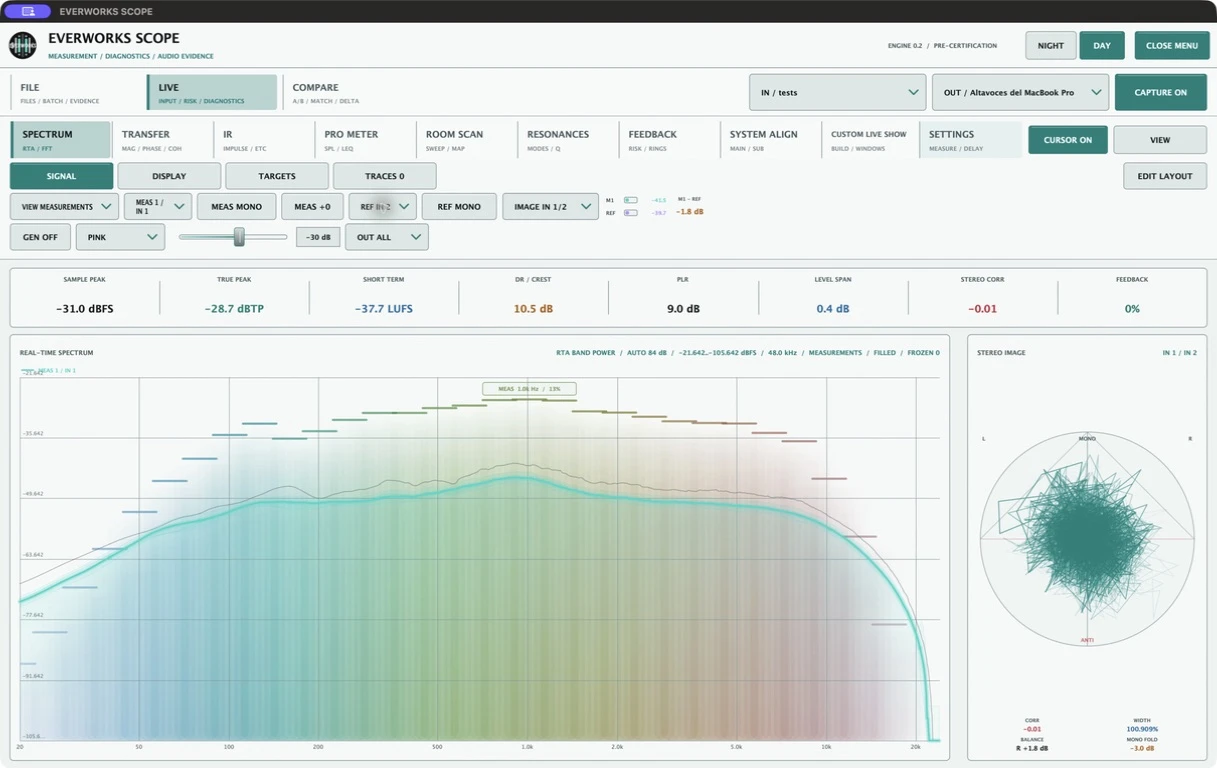

Scope Spectrum in Day mode with RTA, energy bands and stereo image
Spectrum without hidden routing.Display Measurements, Reference or All; select mono or stereo independently, inspect the goniometer and keep Music and System targets tied to their correct sources.

ENGINEERING DETAIL

Controls that map to measurement decisions.

Display resolution never rewrites the native analysis bins. Captures preserve their measurement data while colour, visibility, smoothing, offset and layout remain presentation choices.

Spectrum / RTA

  • True fractional-octave power integration: 1, 1/2, 1/3, 1/6, 1/12, 1/24 and 1/48 octave, plus unsmoothed.
  • Independent Measurement and Reference routing, mono/stereo analysis, captures, colours and cursor data.
  • Music Target reads Reference; System Target reads Measurement.

Transfer / Timing

  • Current MTW and Fixed FFT, with Polar or Complex magnitude and averaging depth 1–10 or Infinite.
  • Magnitude, phase, coherence, Live IR and embedded Spectrum; logarithmic or linear views and stored zoom presets.

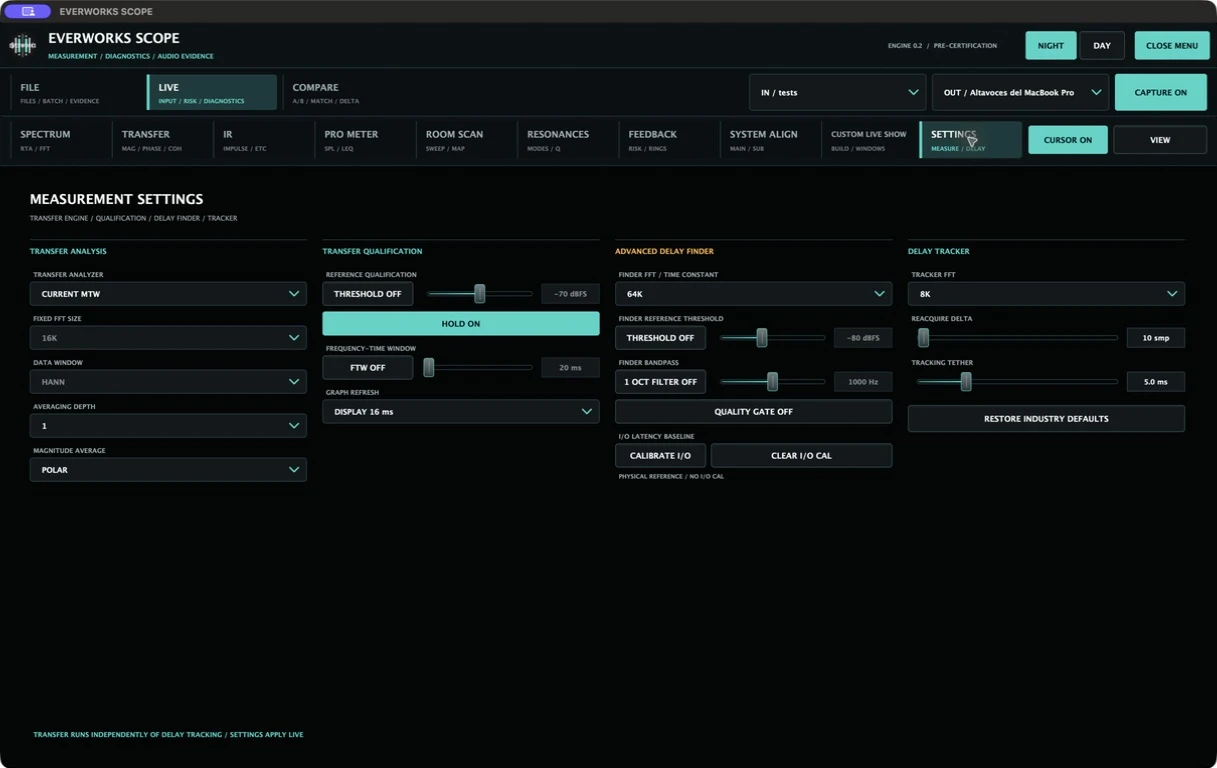

  • Advanced Delay Finder windows from 16K to 128K, tracking, manual MTR and signed delta from the previous find.

Room / Risk

  • Coherent sweeps, multi-position captures, response and real decay waterfall.
  • RT and clarity evidence, including C50, C80 and an explicitly labelled indirect STI estimate.
  • Resonance and feedback analysis share frequency, Q, persistence and trend evidence.

Calibration / Deployment

  • 94 dB, 114 dB or custom acoustic calibration, plus per-input microphone correction files.
  • Portable EQ preset export and recipes constrained to ten common live-console output EQ profiles.
  • System Alignment distinguishes delay/polarity-only matrices from processors that can deploy one AP2 section.
ApplicationNative standalone
macOS13+ · Apple Silicon + Intel
Windows10 / 11 · x64
Sample rates44.1 · 48 · 96 · 192 kHz
DisplayDay · Night · detachable views
Audio I/OIndependent input and output devices

CURRENT FIELD BETA · 0.2.19

Available for field testing, still under validation.

SCOPE ULTRA is still an engineering build. Automated numerical, multirate and stability tests are part of every release candidate, but they do not replace physical loopback, calibrated SPL or PA verification.

The notarized macOS installer and the Windows setup and portable builds are available through the Download Center. System Alignment remains advisory: enter the proposed change in the external processor and confirm it with a new measurement.
